工艺准备Process preparation
在 YunShan3D Slicer 中选择机型、喷嘴与材料预设，检查路径并保存 3MF 项目。Select machine, nozzle and material presets in YunShan3D Slicer, inspect toolpaths and save the 3MF project.
工业级大尺寸 FGF 设备Industrial large-format FGF machines

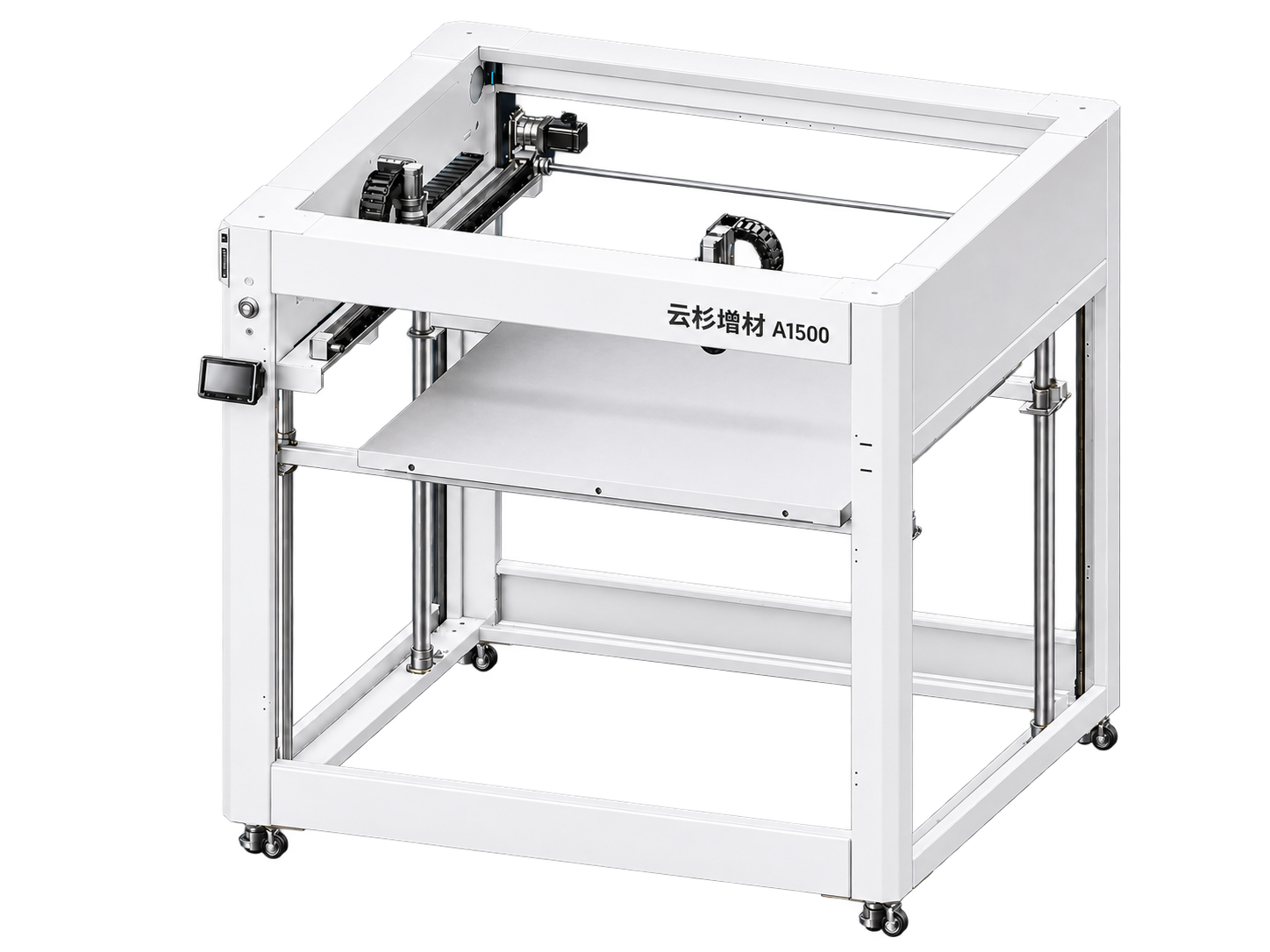

A1500-FGF
颗粒 3D 打印系统Pellet 3D printing system
标准成型尺寸 1500 × 1500 × 1200 mm，面向更大尺寸的模具、雕塑、展陈和工业构件。设备、工艺软件与现场控制形成连续工作流。A standard build volume of 1500 × 1500 × 1200 mm for larger tooling, sculpture, displays and industrial parts. Machine, process software and local control form one continuous workflow.
先判断是否适合ASSESS THE FIT
从工件需求开始选设备Choose the machine around your part
先确认工件外形尺寸、材料、使用要求和交付节奏，再核对成型空间、喷嘴与工艺配置。页面列出的参数是标准方案，实际配置以项目技术方案为准。Confirm part dimensions, material, use and delivery schedule before checking build volume, nozzle and process configuration. Listed specifications describe the standard configuration; the agreed project specification determines the final setup.
适用场景Applications
更大尺寸的模具、雕塑、展陈和工业构件。最终设备配置、材料与工艺参数应根据实际工件和现场条件确认。Larger tooling, sculpture, displays and industrial parts. Confirm the final machine configuration, material and process settings against the actual part and site conditions.
从模型到设备的工作流A workflow from model to machine
现场执行Local operation
通过云智控的本机屏幕和 WebUI 进行温控、上料、校准、文件管理与打印。Use Cloud Control through the machine screen and WebUI for temperature control, feeding, calibration, files and printing.
远程协作Remote collaboration
设备配置支持时，可在云智控中查看状态、摄像画面与异常记录。Where supported by the machine configuration, view status, camera images and anomaly records in Cloud Control.
关键技术参数Key specifications
| 标准成型尺寸Standard build volume | 1500 × 1500 × 1200 mm |
|---|---|
| 设备尺寸Machine dimensions | 2000 × 2160 × 2000 mm |
| X/Y 轴驱动X/Y-axis drive | 伺服电机Servo motors |
| 喷嘴尺寸Nozzle sizes | 1.0 / 1.5 / 2.0 mm |
| 适用材料Supported materials | PLA、PETG、ABS、ASA、PP 等；具体材料需结合工艺验证PLA, PETG, ABS, ASA, PP and others; validate each material with the process |
| 打印速度Print speed | 10–300 mm/s；以材料、喷嘴和模型条件为准10–300 mm/s; depends on material, nozzle and geometry |
| 切片与控制Slicing and control | YunShan3D Slicer、本机显示屏和 WebUIYunShan3D Slicer, machine screen and WebUI |
| 可选数字能力Optional digital features | 远程监控与 AI 视觉能力以实际配置和服务开通情况为准Remote monitoring and AI vision depend on configuration and activated services |
项目证据与资料Project records and documentation
项目照片、工件尺寸、材料、重量、打印时间与正式规格书待核实后发布。Project photos, dimensions, material, weight, print time and official specifications will be published after verification.
用真实工件确认设备配置Confirm the configuration with a real part
提供工件尺寸、材料、用途和交付要求，获取设备与工艺建议。Share dimensions, material, intended use and delivery requirements for machine and process advice.
