01
FGF 颗粒直挤Direct pellet extrusion
伺服驱动的颗粒挤出方案，适配多种热塑性颗粒，服务大体积成型。Servo-driven pellet extrusion supports a range of thermoplastic feedstocks for large builds.
工业级大尺寸 FGF 设备Industrial large-format FGF machines

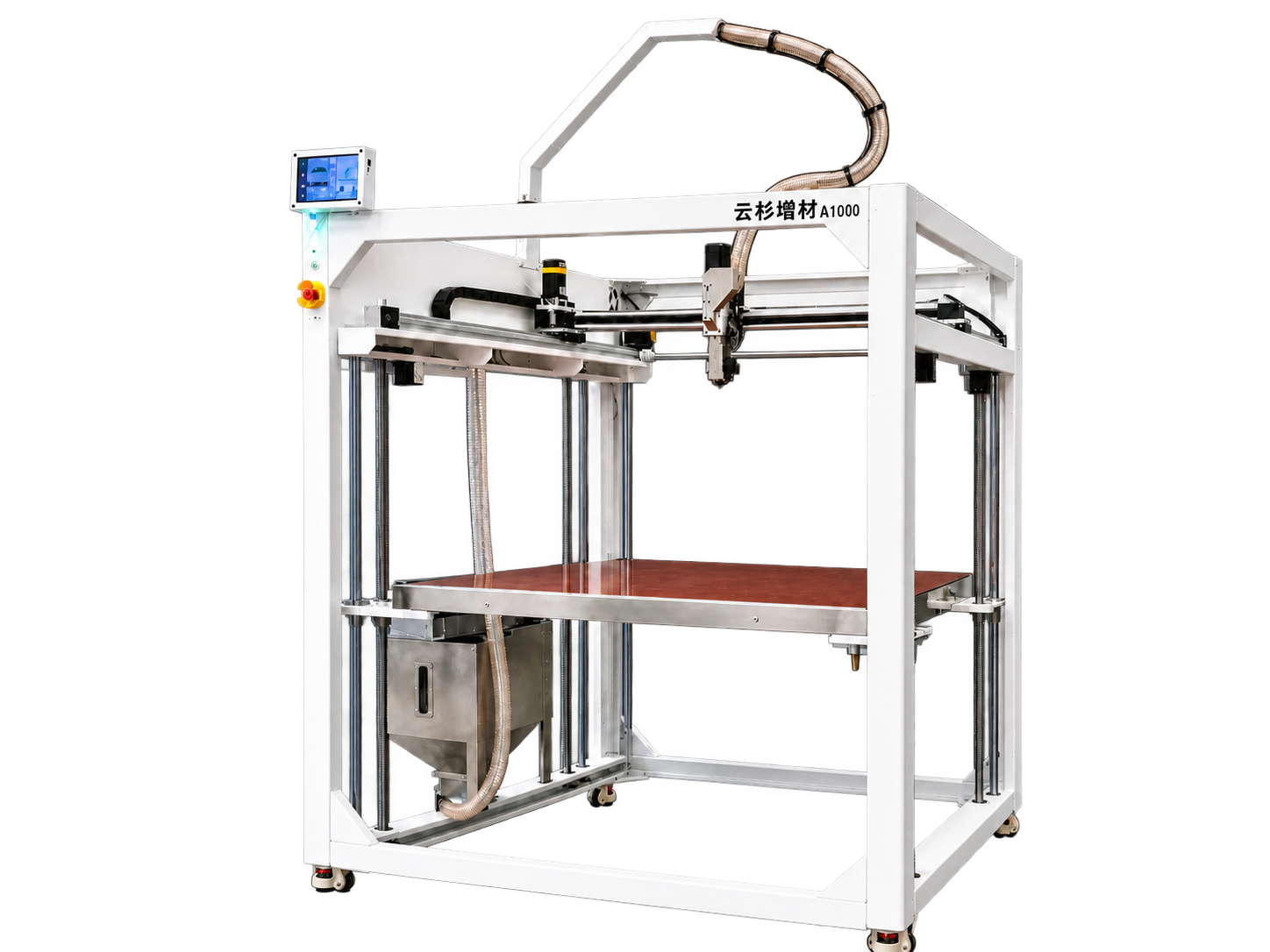

A1000-FGF
颗粒 3D 打印系统Pellet 3D printing system
标准成型尺寸 1000 × 1000 × 1000 mm，集成颗粒直挤、智能上料与断电续打，并通过云智控连接远程管理、AI 视觉检测与设备维护。A 1000 × 1000 × 1000 mm build volume with direct pellet extrusion, intelligent feeding and power-loss print recovery. Cloud Control connects remote management, AI vision and maintenance.
先判断是否适合ASSESS THE FIT
从工件需求开始选设备Choose the machine around your part
先确认工件外形尺寸、材料、使用要求和交付节奏，再核对成型空间、喷嘴与工艺配置。页面列出的参数是标准方案，实际配置以项目技术方案为准。Confirm part dimensions, material, use and delivery schedule before checking build volume, nozzle and process configuration. Listed specifications describe the standard configuration; the agreed project specification determines the final setup.
A1000 · 核心特点CORE FEATURES
从供料到维护，
照顾打印的每一步。From feeding to maintenance,
support at every step.
大尺寸成型之外，让连续打印、远程管理和日常维护衔接得更顺畅。Beyond build volume, connect continuous printing, remote management and everyday maintenance.
02
智能上料系统Intelligent feeding
自动监测供料状态，按需补料，为长时间连续打印提供支持。Monitors feedstock supply and replenishes material as needed to support continuous printing.
03
断电自动续打Power-loss print recovery
支持断电恢复后的打印任务续接，减少重复打印带来的时间与材料损失。Resumes print jobs after power is restored, reducing the time and material lost to restarting a build.
04
云端大模型 AI 视觉检测Cloud AI visual inspection
分析打印画面，识别疑似异常，提供预警与辅助干预，减少打印失败风险。Analyzes print images for suspected anomalies, with alerts and assisted intervention to help reduce failed prints.
05
公网远程控制Remote monitoring & control
通过云智控查看打印状态、进度与摄像画面，按权限远程操作设备。View print status, progress and camera images in Cloud Control, with remote operation according to permissions.
06
农场多设备集群管理Multi-machine farm management
集中查看多台设备的运行状态、打印进度与任务信息，统筹设备管理。See operating status, print progress and job information across multiple machines in one place.
07
自动设备故障诊断Automatic fault diagnostics
结合设备运行数据辅助分析异常原因，提供故障排查建议，提高维护效率。Uses machine operating data to help analyze faults and suggest troubleshooting steps for more efficient maintenance.
08
远程 OTA 更新Remote OTA updates
支持远程固件与软件更新，持续优化设备功能，并衔接授权维护流程。Supports remote firmware and software updates, connected to authorized maintenance workflows.
以上特点对应 A1000 宣传方案，具体硬件配置、软件版本及远程服务以交付方案为准。These features describe the A1000 offering. Hardware configuration, software version and remote services follow the agreed delivery specification.
从模型到设备的工作流A workflow from model to machine
工艺准备Process preparation
在 YunShan3D Slicer 中选择机型、喷嘴与材料预设，检查路径并保存 3MF 项目。Select machine, nozzle and material presets in YunShan3D Slicer, inspect toolpaths and save the 3MF project.
现场执行Local operation
通过云智控的本机屏幕和 WebUI 进行温控、上料、校准、文件管理与打印。Use Cloud Control through the machine screen and WebUI for temperature control, feeding, calibration, files and printing.
远程协作Remote collaboration
设备配置支持时，可在云智控中查看状态、摄像画面与异常记录。Where supported by the machine configuration, view status, camera images and anomaly records in Cloud Control.
关键技术参数Key specifications
| 打印参数Print configuration | |
|---|---|
| 标准成型尺寸Standard build volume | 1000 × 1000 × 1000 mm |
| 设备尺寸Machine dimensions | 1400 × 1350 × 2000 mm |
| 成型方式Printing process | FGF |
| 适用领域Applicable fields | 雕塑、模具、美陈、汽车、科研等Sculpture, tooling, displays, automotive and research |
| 喷嘴尺寸Nozzle sizes | 1.0 / 1.5 / 2.0 mm · 高分子涂层喷嘴Polymer-coated nozzle |
| 喷嘴温度Nozzle temperature | 0–300 °C |
| 热床温度Bed temperature | 0–100 °C |
| 打印材料Printing materials | PLA / PETG / ABS / ASA / PP |
| 打印速度Print speed | 10–300 mm/s |
| 打印精度Printing accuracy | ±0.2 mm · 1.5 mm 喷嘴典型工况Typical conditions with a 1.5 mm nozzle |
| 硬件配置Hardware configuration | |
| 热床材质Bed material | 玻璃 / 铝合金，可定制Glass / aluminum alloy; customizable |
| X/Y 轴模组X/Y-axis motion module | 高精度线性模组 + 闭环混合伺服电机High-precision linear module + closed-loop hybrid servo motors |
| Z 轴模组Z-axis motion module | Φ20 滚珠丝杠 + Φ25 光轴Φ20 ball screw + Φ25 smooth guide shafts |
| 挤出机Extruder | 氮化螺杆 + 伺服驱动电机Nitrided screw + servo drive motor |
| 操作屏Touchscreen | 7 寸智能触摸屏7-inch intelligent touchscreen |
| 结构框架Machine frame | 全钢钣金框架 + 烤漆工艺Full steel sheet-metal frame with baked-paint finish |
| 软件、供电与功能Software, power and features | |
| 切片软件Slicing software | YunShan3D Slicer / OrcaSlicer / Cura |
| 文件格式File formats | STL / STP / OBJ / 3MF |
| 操作系统Operating systems | Windows / macOS |
| 工作电压Operating voltage | 220 V · 需可靠保护接地Reliable protective grounding required |
| 整机功率Total machine power | 2500 W |
| 特色功能Featured features | 云智控（微信远程监控 / 控制）、断电续打、断料检测、自动上料Cloud Control (WeChat remote monitoring / control), power-loss print recovery, material-runout detection and automatic feeding |
支持非标定制成型尺寸。打印速度与精度受材料、喷嘴、模型结构和工艺条件影响；±0.2 mm 为 1.5 mm 喷嘴典型工况，不代表所有工件和设置下的统一结果。Custom build volumes are available. Print speed and accuracy depend on material, nozzle, geometry and process conditions. ±0.2 mm is a typical value with a 1.5 mm nozzle, rather than a result for every part and setting.
下载中英参数表 PDFDownload bilingual specifications PDF ↓适用场景Applications
工业模具与工装Industrial tooling
模具原型、定制夹具与辅助工装，支持设计验证与快速迭代。Mold prototypes, custom fixtures and tooling for design validation and rapid iteration.
汽车零部件开发Automotive development
用于结构验证、样件试制与辅助工装，按工件要求核对材料与工艺。Structural validation, prototype trials and tooling, with material and process matched to the part.
建筑与艺术Architecture & art
面向异形构件、艺术装置与展示模型，结合运输安装评估整体或分件制造。Complex architectural forms, art installations and display models, planned around transport and installation.
家具与创意设计Furniture & creative design
支持艺术家具、创意结构与个性化定制，结合实际用途验证结构和表面效果。Art furniture, creative structures and custom designs, with structure and finish validated for the intended use.
项目证据与资料Project records and documentation
设备参数见上表；项目实拍、工件材料、重量与打印时间将随具体案例补充。Machine specifications are listed above. Project photos, part materials, weight and print time will be added with individual case studies.
用真实工件确认设备配置Confirm the configuration with a real part
提供工件尺寸、材料、用途和交付要求，获取设备与工艺建议。Share dimensions, material, intended use and delivery requirements for machine and process advice.
